Intelligent Lithium Battery Test Cabinet —— Fireproof for 90 Minutes · Multi‑Sensor Monitoring · BMS Monitoring · Safe Charge/Discharge Test
Home  >  Products  >  Intelligent Battery Storage Cabinets  >  Intelligent Lithium Battery Test Cabinet

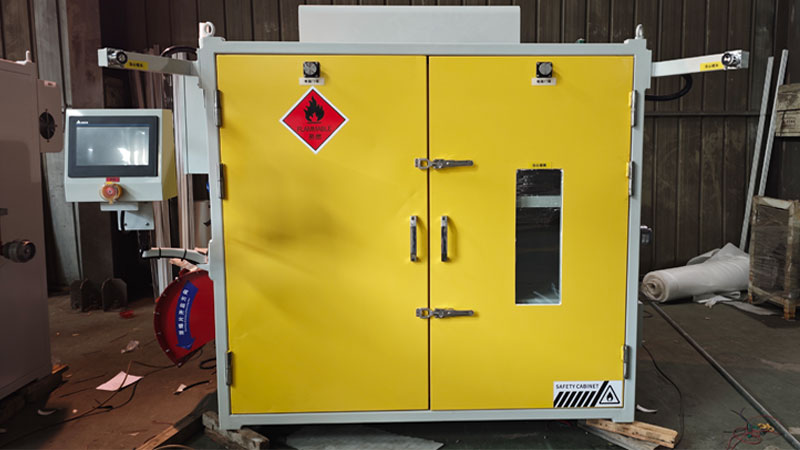

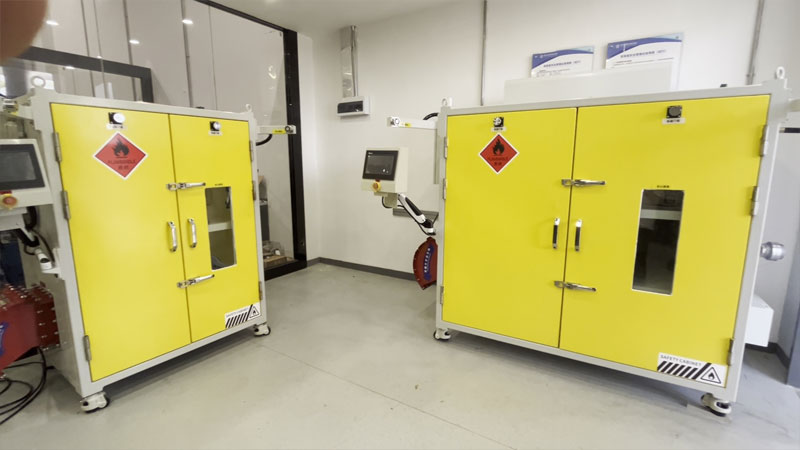

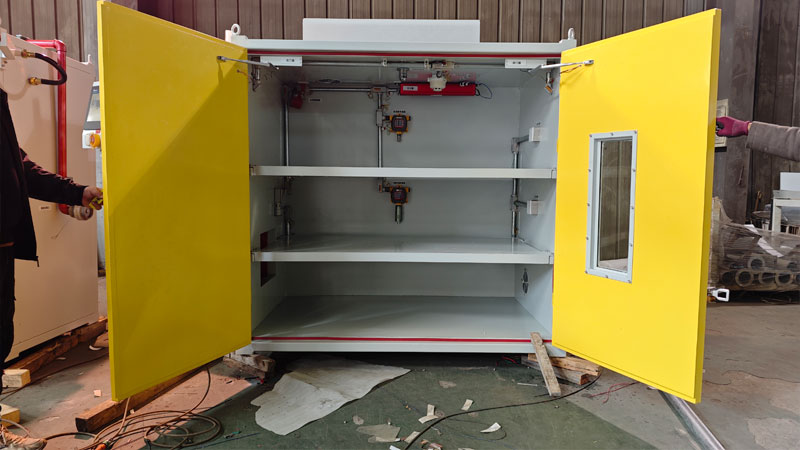

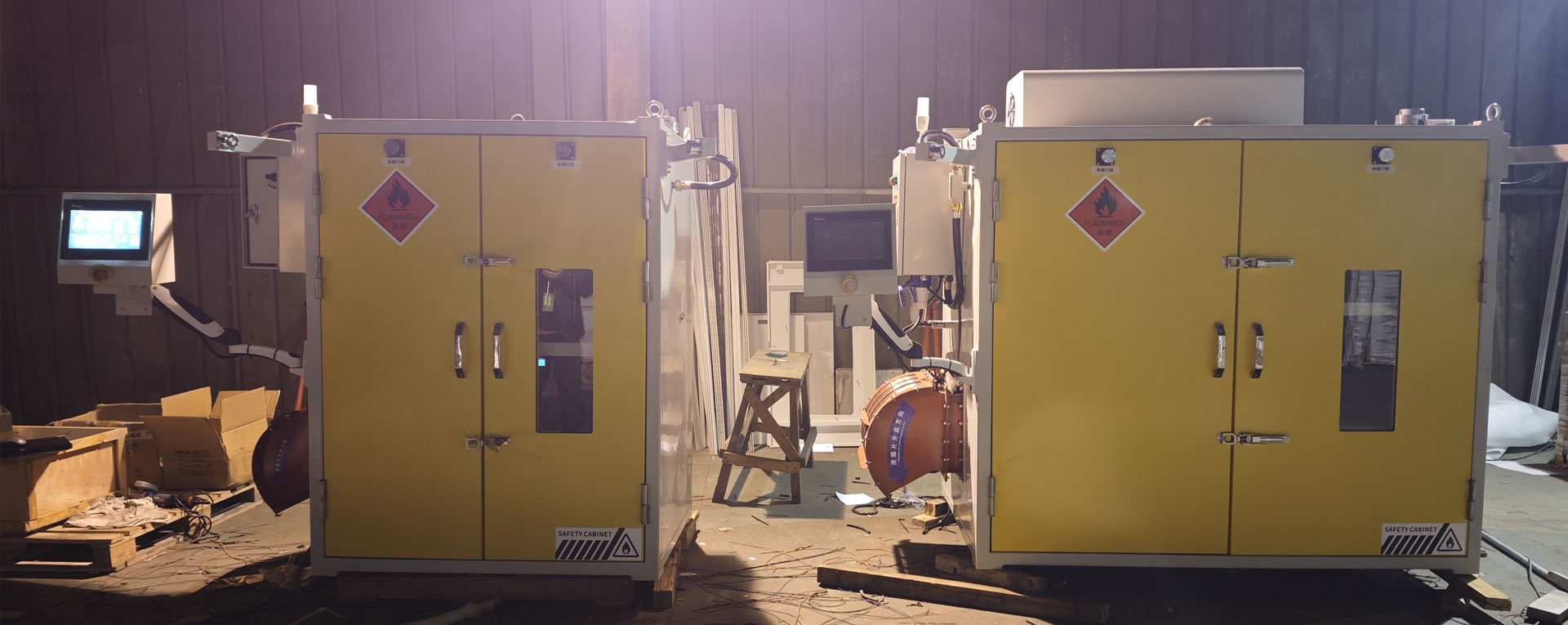

Intelligent Lithium Battery Test Cabinet
Intelligent Lithium Battery Test Cabinet
Intelligent Lithium Battery Test Cabinet
Intelligent Lithium Battery Test Cabinet
Intelligent Lithium Battery Test Cabinet
Applicable Scenarios：
  • - Performance tests, quality inspections, R&D verifications in battery manufacturers, third‑party testing institutions, research laboratories and new energy R&D centers, etc.
Intelligent Lithium Battery Test Cabinet
Description Description ：
This solution includes intelligent professional testing equipment integrating capacity detection, voltage testing, charge/discharge and safety detection. It complies with EN14470 and is fire-resistant for 90 minutes. The solution features a high degree of safety protection and intelligent modules which support batch testing and automatic data recording as well as full traceability.
Functions and Configurations ：
① High‑Precision Detection: Accurately measures core parameters including capacity, voltage, internal resistance and charge-discharge efficiency with detection error ≤±1%;
② Multiple Safety Protections: Equipped with overcharge, over-discharge, overcurrent and over-temperature protection; monitors battery status in real time and halts testing with alarm upon abnormalities;
③ Compatible: Supports testing of pouch, prismatic, cylindrical lithium batteries including 18650, 21700 and other models;
④ Intelligent Data Recording: Automatically stores test data in cloud, supporting historical data query, export and analysis for quality traceability.
⑤ Touch Control Operation Interface: It features simple and intuitive operation and supports batch test settings and one-click startup.
Select Configuration
Standard Configuration
  • External dimensions (customizable)
  • H2100 x W900 x L1100 mm
  • H2100 x W1200 x L1100 mm
  • Leakage Collection;
  • Ventilation / Make-up Air Vents;
  • Explosion-Proof Lighting;
  • Static Elimination;
  • Automatic Fire Suppression;
Optional Configuration
Electronic Access Control
Forced Ventilation
Waste Gas Purification
Monitoring System
Storage System
Explosion Venting / Pressure Relief Measures
Temperature Control System
Fire Suppression System
Online Monitoring System
Display System
Automatic Control System
Remote IoT System
Safety Signs
Professional customization available for diverse industries and individual requirements Message & Inquiry
